Porch Project 2006

The wood was ordered and delivered in three loads. Each load’s dollar amount met the minimum requirement for the delivery to be free. This kept the yard stock quantities down while I primed and painted the boards.

HTTP://www.synthmind.com/Lumber in drwy.JPG (79582 bytes)HTTP://www.synthmind.com/lumber load-02.JPG (373444 bytes)

These Saddle Brackets were designed by me and manufactured at a local metal works shop. I primed the mild steel with two coats of phosphoric acid and two coats of red primer. I then applied two coats of copper metallic paint.

HTTP://www.synthmind.com/saddle brackets.JPG (374398 bytes)HTTP://www.synthmind.com/saddle brackets finished.JPG (400780 bytes)

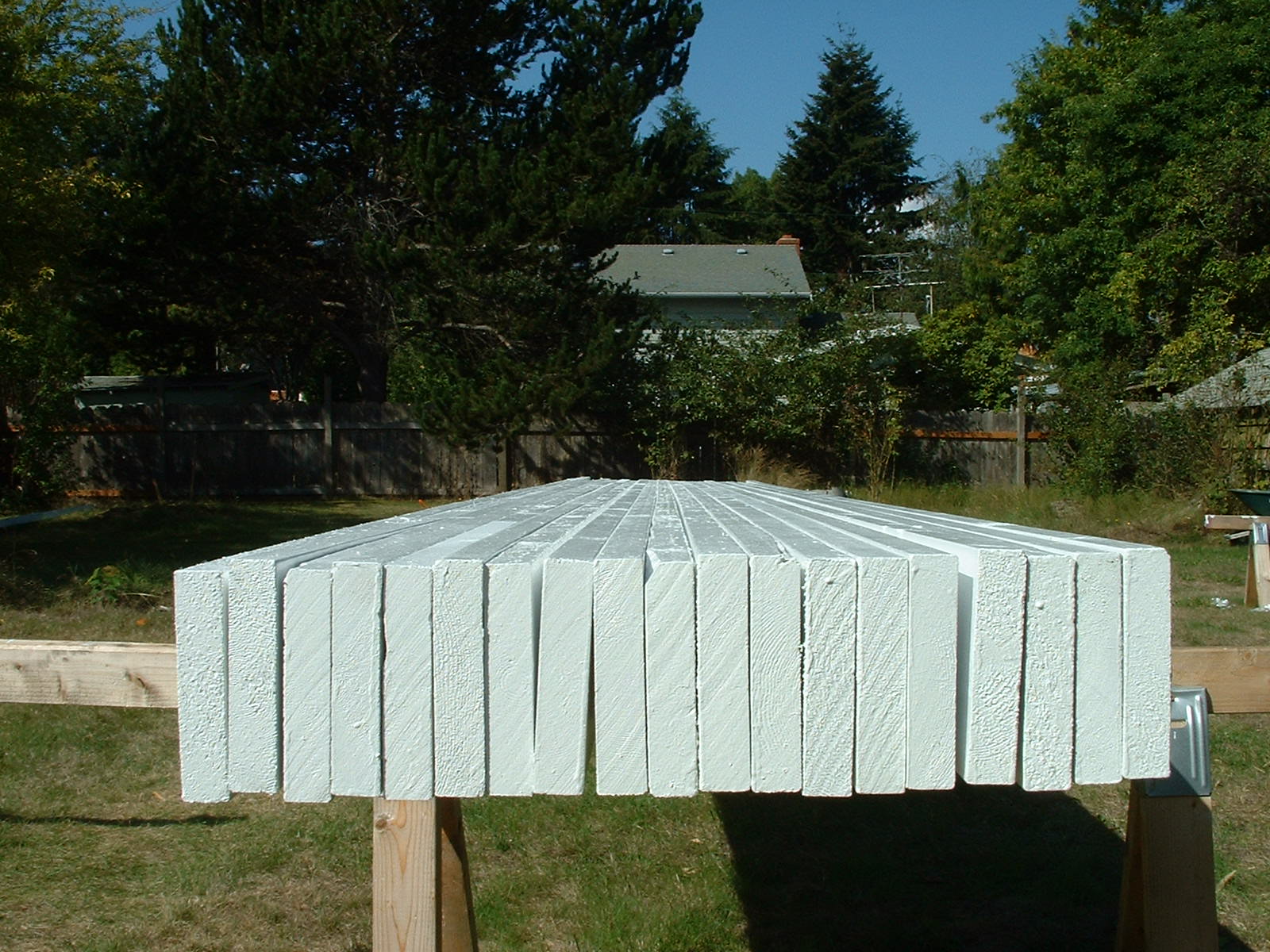

I hate to paint above my head, OUCH! So I spent the summer priming and painting all the lumber.

HTTP://www.synthmind.com/primed lumber-01.JPG (382170 bytes)HTTP://www.synthmind.com/primed lumber-02.JPG (372120 bytes)HTTP://www.synthmind.com/primed lumber-03.JPG (373285 bytes)HTTP://www.synthmind.com/primed lumer -04.JPG (373458 bytes)HTTP://www.synthmind.com/painted lumber-01.JPG (369874 bytes)HTTP://www.synthmind.com/painter lumber-02.JPG (377358 bytes)HTTP://www.synthmind.com/RafterPrimer.jpg (153835 bytes)HTTP://www.synthmind.com/rafters.JPG (369263 bytes)

Three concrete footings were installed. Mixing concrete by hand with a hoe in a wheelbarrow is a real pain.

HTTP://www.synthmind.com/footing-01.jpg (266906 bytes)

I raised the three posts and plumbed them upright. Using the Theodolite, I determined level measurements across all three. I trimmed each post and re-installed.

HTTP://www.synthmind.com/posts.JPG (404399 bytes)HTTP://www.synthmind.com/Surveying Instrument setup.JPG (400294 bytes)HTTP://www.synthmind.com/Surveying Instrument-02.JPG (400335 bytes)

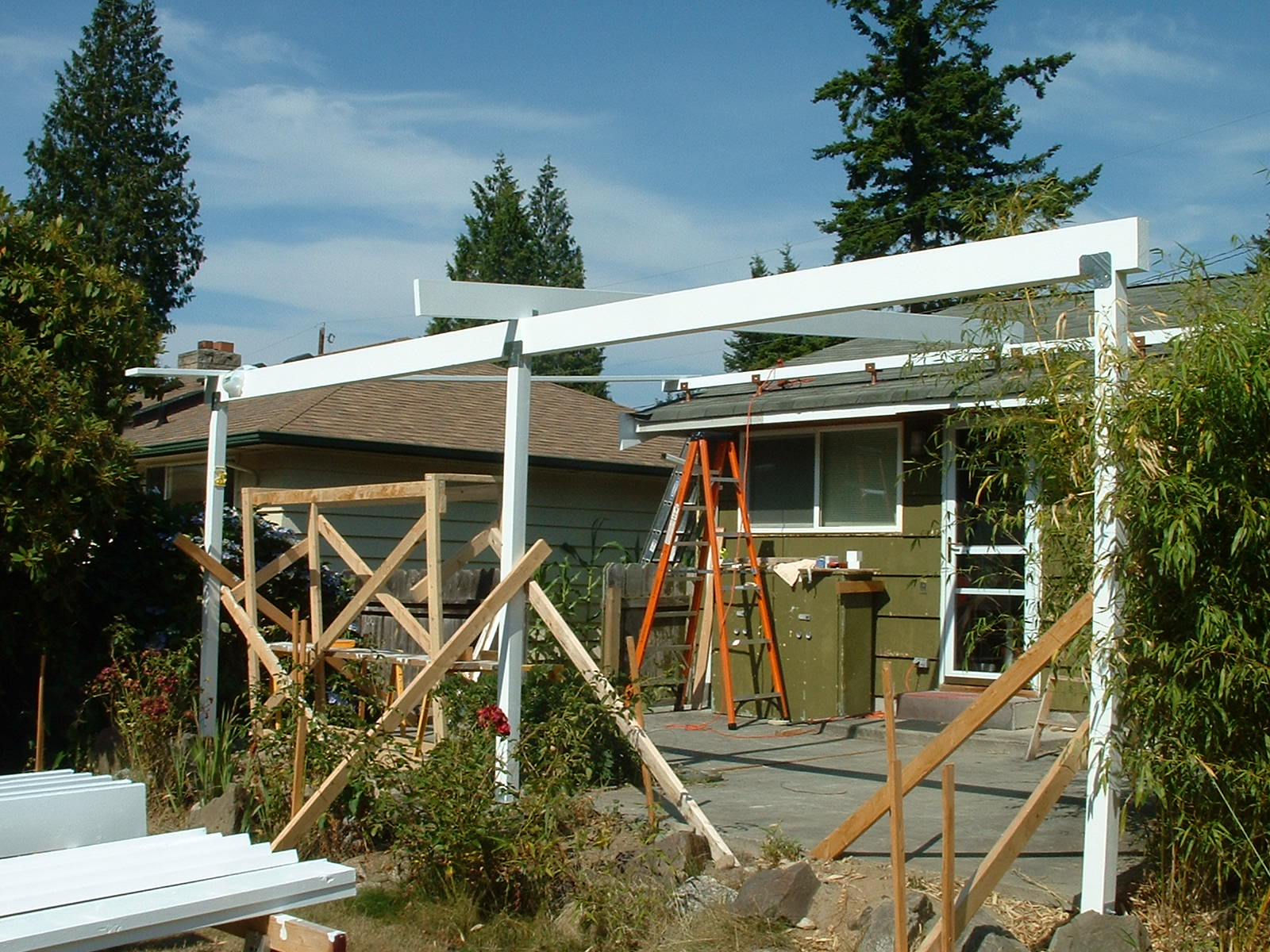

I built a scaffold for raising the front header beams. This way I could lift them up in small stages by myself.

HTTP://www.synthmind.com/posts-02.JPG (391091 bytes)HTTP://www.synthmind.com/posts-01.JPG (370909 bytes)HTTP://www.synthmind.com/post and beam.JPG (375098 bytes)HTTP://www.synthmind.com/post and beam 02.JPG (381978 bytes)HTTP://www.synthmind.com/post and beam -04.JPG (382351 bytes)

As I placed the front header beams I installed one rafter to stabilize the structure.

HTTP://www.synthmind.com/post and beam -03.JPG (395715 bytes)post and beam-05.JPG (382508 bytes)

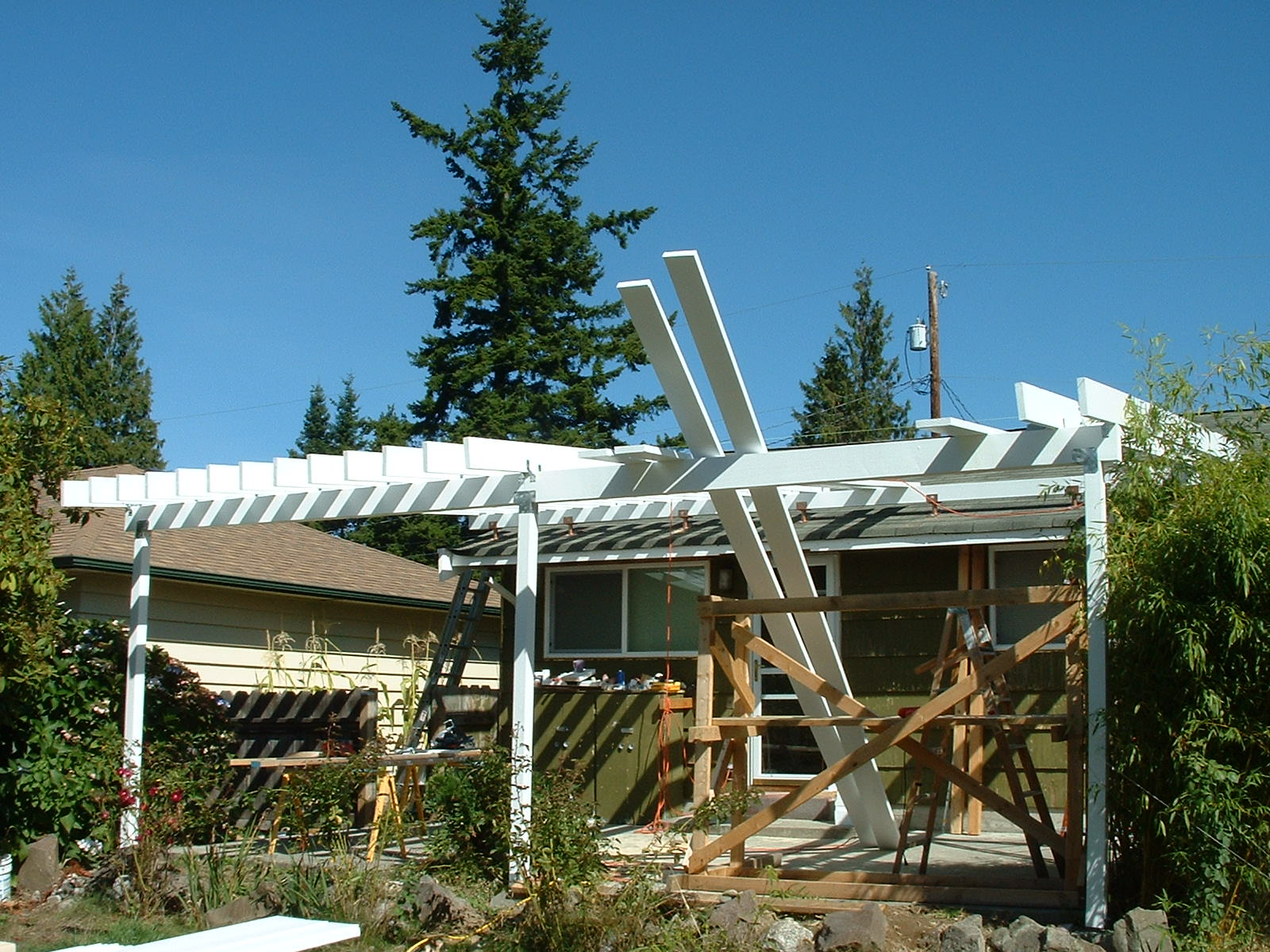

These pictures show raising and installing the 15 rafters. See the blue rubber sheet tied on the rafter on the second picture? I used this as a second set of hands throughout the construction effort.

HTTP://www.synthmind.com/raftters-01.JPG (379849 bytes)HTTP://www.synthmind.com/rafters-04.JPG (377590 bytes)HTTP://www.synthmind.com/rafters-05.JPG (377898 bytes)HTTP://www.synthmind.com/rafters-06.JPG (386901 bytes)HTTP://www.synthmind.com/rafters-07.JPG (374646 bytes)HTTP://www.synthmind.com/rafters-08.JPG (382234 bytes)HTTP://www.synthmind.com/rafters-09.JPG (370536 bytes)rafters-12.JPG (382563 bytes)

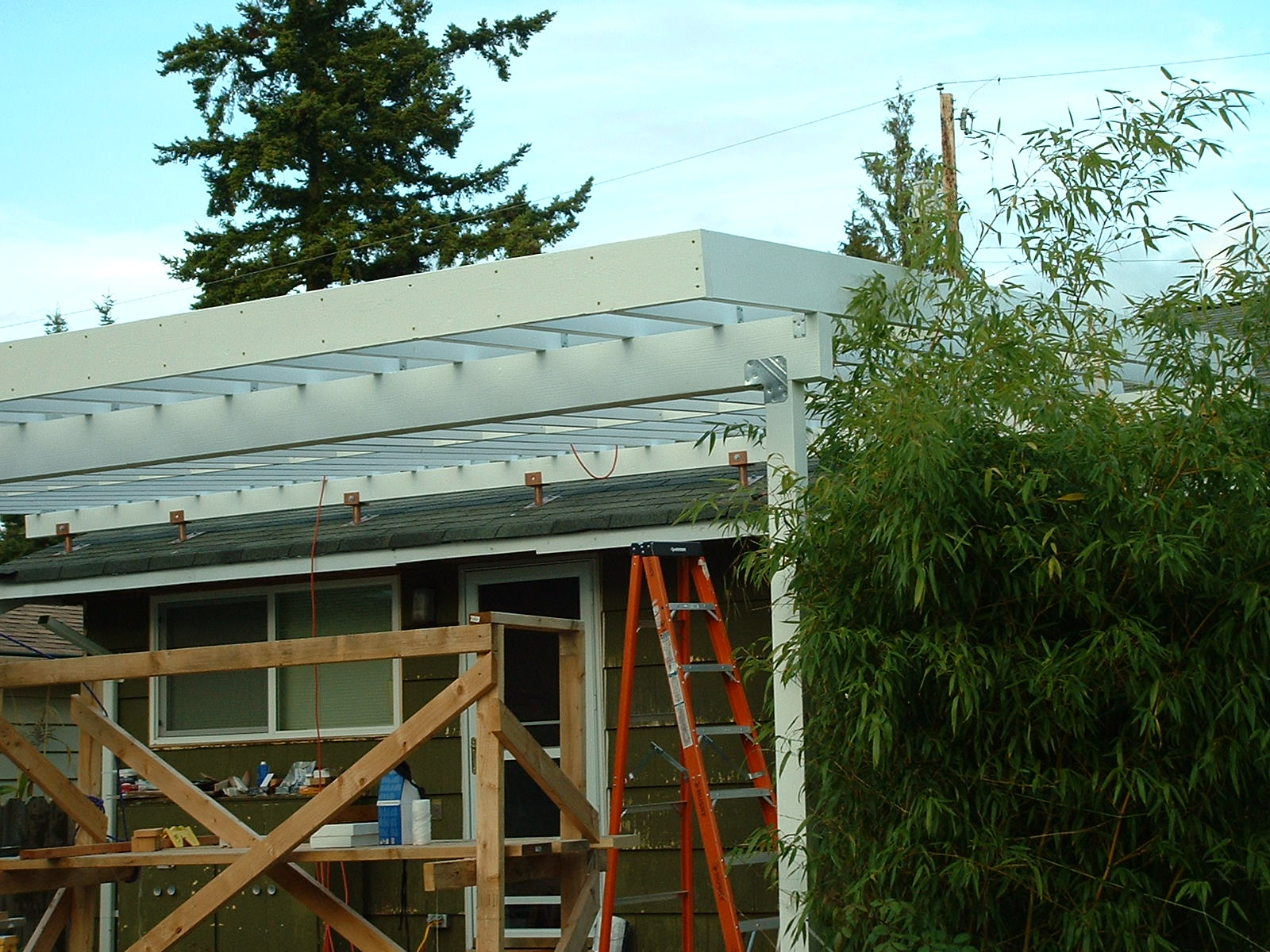

I tied the sub-facia with string to the two 14’ 4x4’s and pulled the assembly up from behind with rope. This brought the board up to where I could pull them into place a screw them in.

HTTP://www.synthmind.com/rafters-11.JPG (379895 bytes)HTTP://www.synthmind.com/rafters facia-01.JPG (388090 bytes)HTTP://www.synthmind.com/rafters facia-02.JPG (379605 bytes)HTTP://www.synthmind.com/rafters facia-03.JPG (377446 bytes)

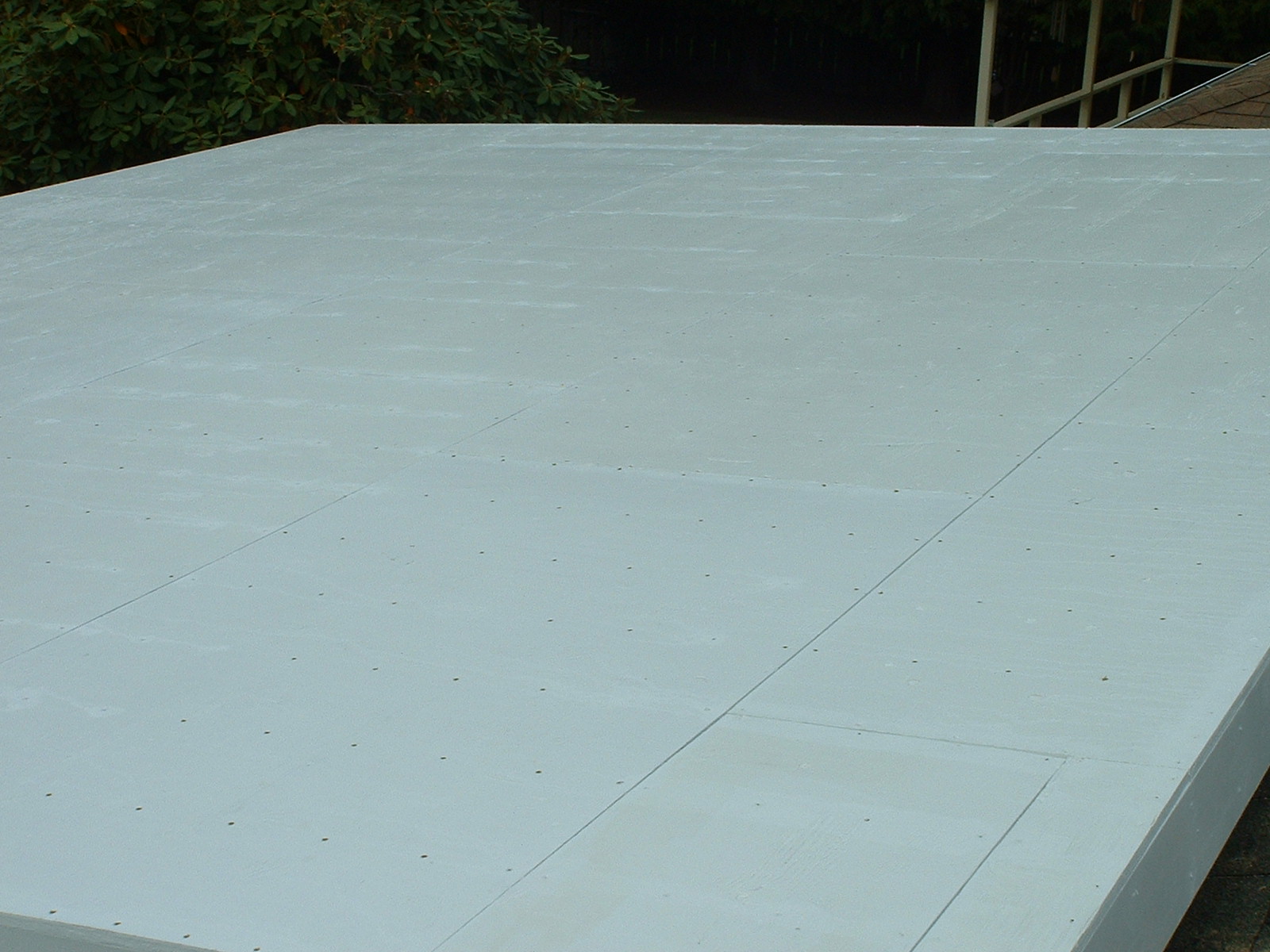

All the ¾” plywood was primed and painted. I lifted each sheet up and cut to fit. I primed and painted the cut ends and then screwed them into place. Each sheet required between 80 to 96 screws depending on the panel’s location. The edges were screwed at 4” and the body at 6” into the 1’ OC rafters. This may sound like overkill but the porch is one big open surface that will act like a wing. I do not want this wing to lift off in the next big wind storm and go flying.

HTTP://www.synthmind.com/roof plywood-01.JPG (370696 bytes)HTTP://www.synthmind.com/roof plywood-02.JPG (379548 bytes)HTTP://www.synthmind.com/roof plywood-03.JPG (371276 bytes)HTTP://www.synthmind.com/roof plywood-04.JPG (374323 bytes)

These pictures show the final surface application of PVC roofing material and the flashing. I hired a contractor to do this.

HTTP://www.synthmind.com/Roof Finish-01.JPG (370552 bytes)HTTP://www.synthmind.com/roof finish -02.JPG (367133 bytes)

This is it. Done!

HTTP://www.synthmind.com/Porch Final Inspection.JPG (416937 bytes)  HTTP://www.synthmind.com/Porch Final Inspection sideview.JPG (474068 bytes)
