Whirlpool Top Loading Washing Machine

Model LLR6233AWO

SERIAL  CD0367865

Click on any picture to see full size.

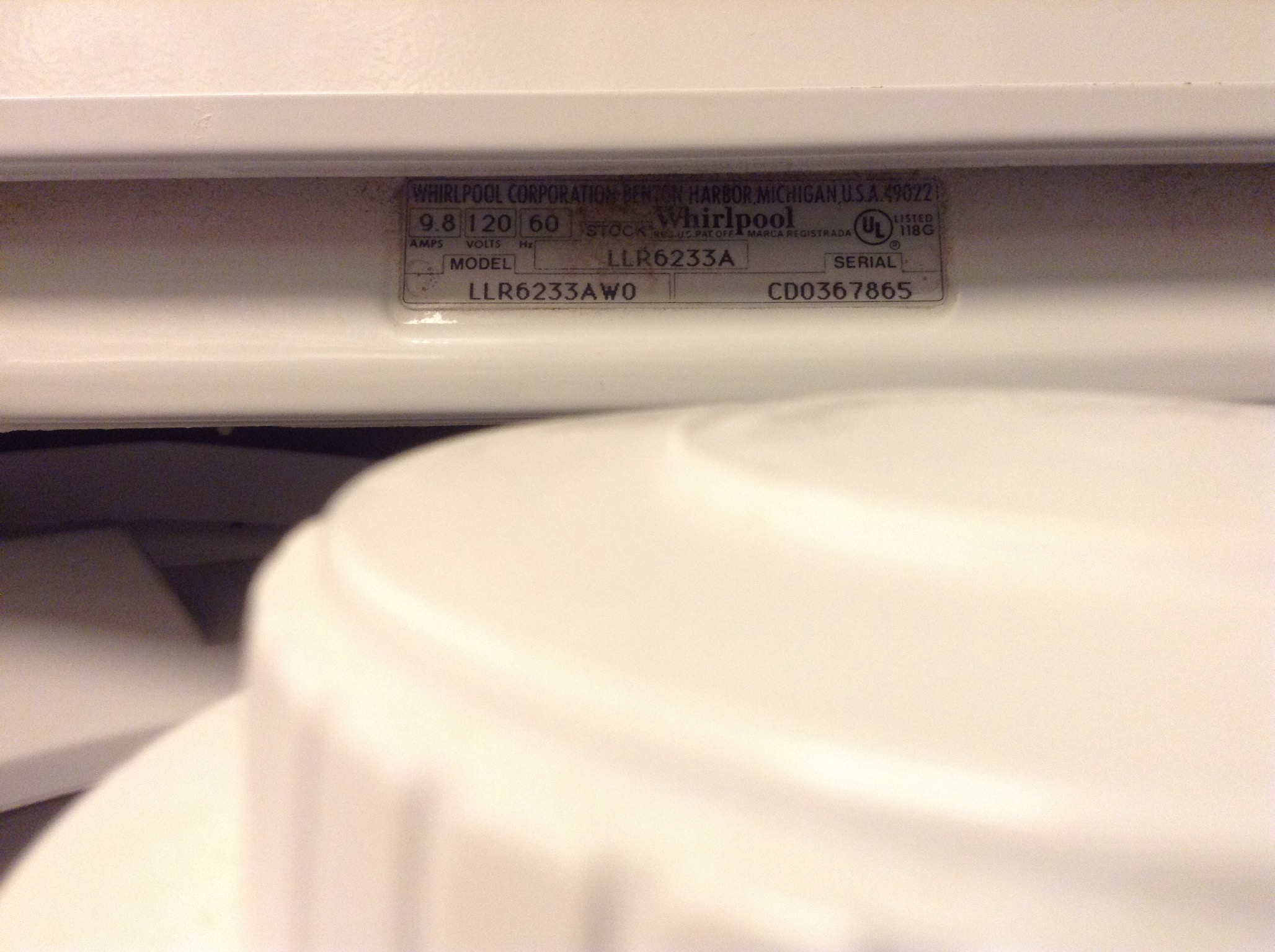

Whirlpool Model Tag

Brand: Whirlpool
Type: Washing Machine
Country: USA
Model: LLR6233AWO
Serial: CD0367865
According to the serial number this product may have been manufactured in Clyde, OH, January of 1994.

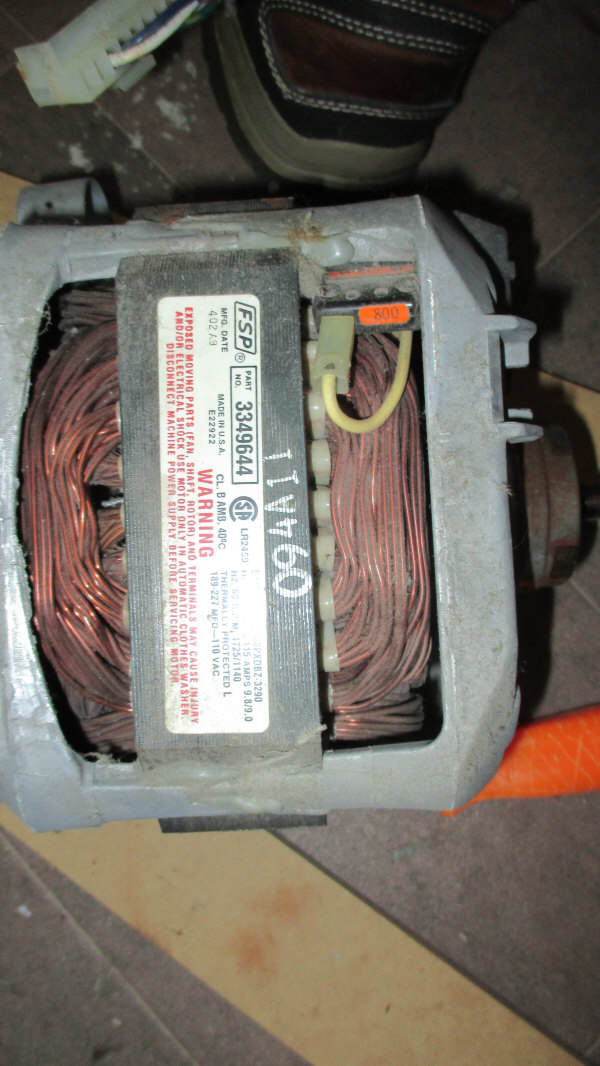

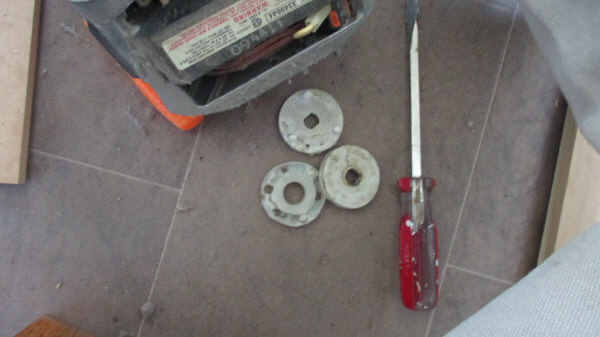

Direct Drive Motor Coupling Replacement

PartSelect Number PS1485646 $11.77 + tax and shipping.

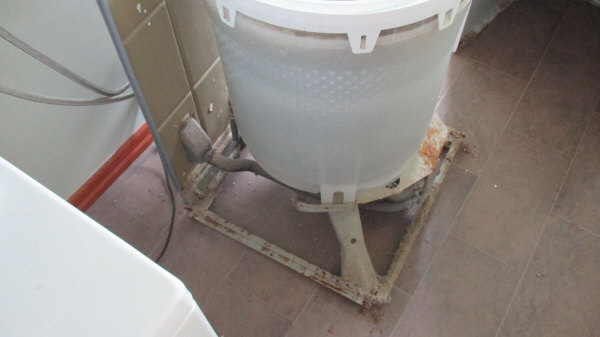

Besides replacing the coupling all the rust was treated with a phosphoric acid primer. This stops or slows the rusting. It turns rust black. I get this at an automotive parts or paint store. I'm hoping to make this machine last.  I have learned to photograph the hell out of a project especially during disassembly to aid me during re-assembly.

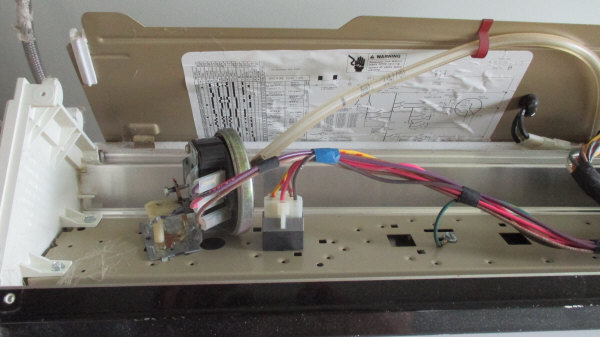

Top left

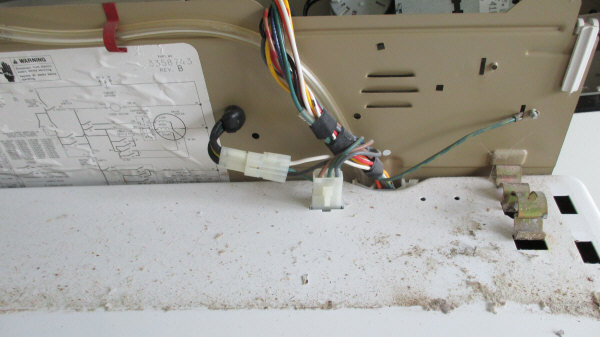

Top right

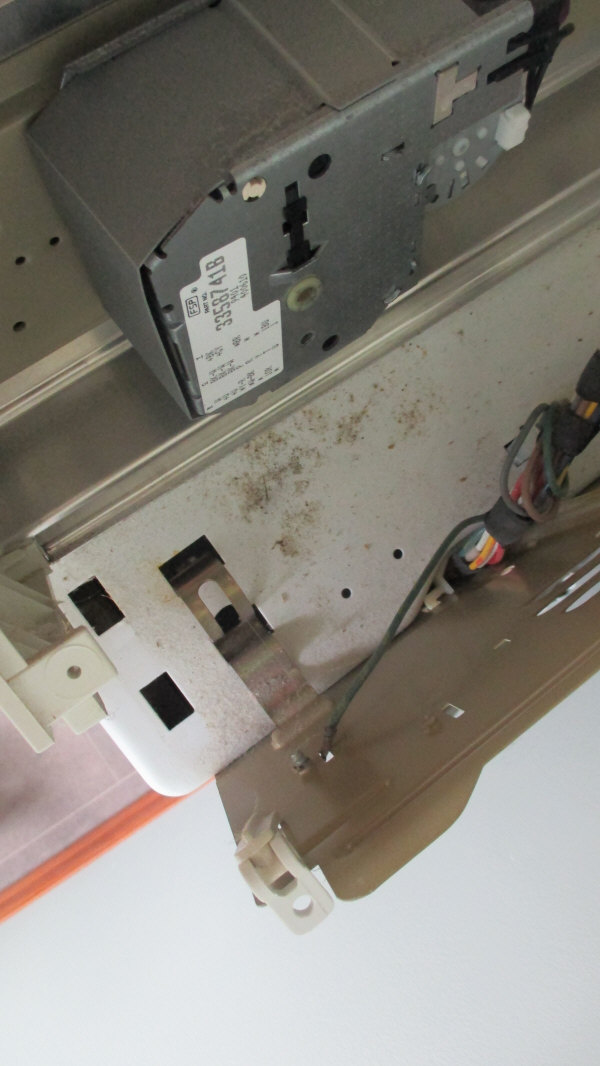

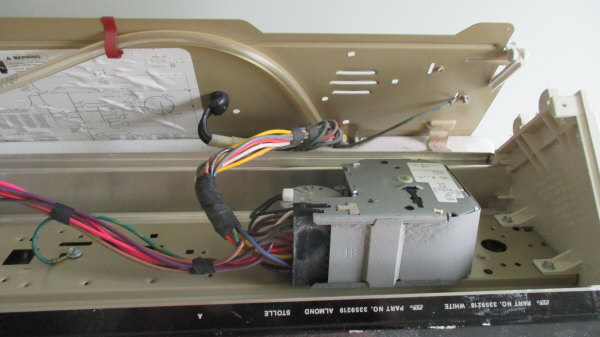

Timer Replacement March 2018

Part Select part number PS71336 $142.93 + shipping and tax  $151.42.
